FR Baby

Versatility without voluminosity

FR BABY is a next-generation convection oven designed to deliver high performance in environments with limited height, without compromising on quality or capacity.
Thanks to forced air circulation and a rotating rack system, it ensures fast, even, and consistent baking .
Ideal for a wide variety of small to medium-sized bakery and pastry products.

Key Forniture:
- Forced air convection system with balanced airflow for uniform heat distribution.
- FR BABY 46 Removable rotating rack with a capacity of 12 trays, cm.40x60.
- FR BABY 57 Removable rotating rack with a capacity of 12 trays, cm.50x70 or 18x26 inches.
- FR BABY 68 Removable rotating rack with a capacity of 12 trays, cm.60x80.
- Available in electric version with high-performance armored heating elements, or with a gas/diesel burner.
- Full stainless steel construction for maximum durability and hygiene.

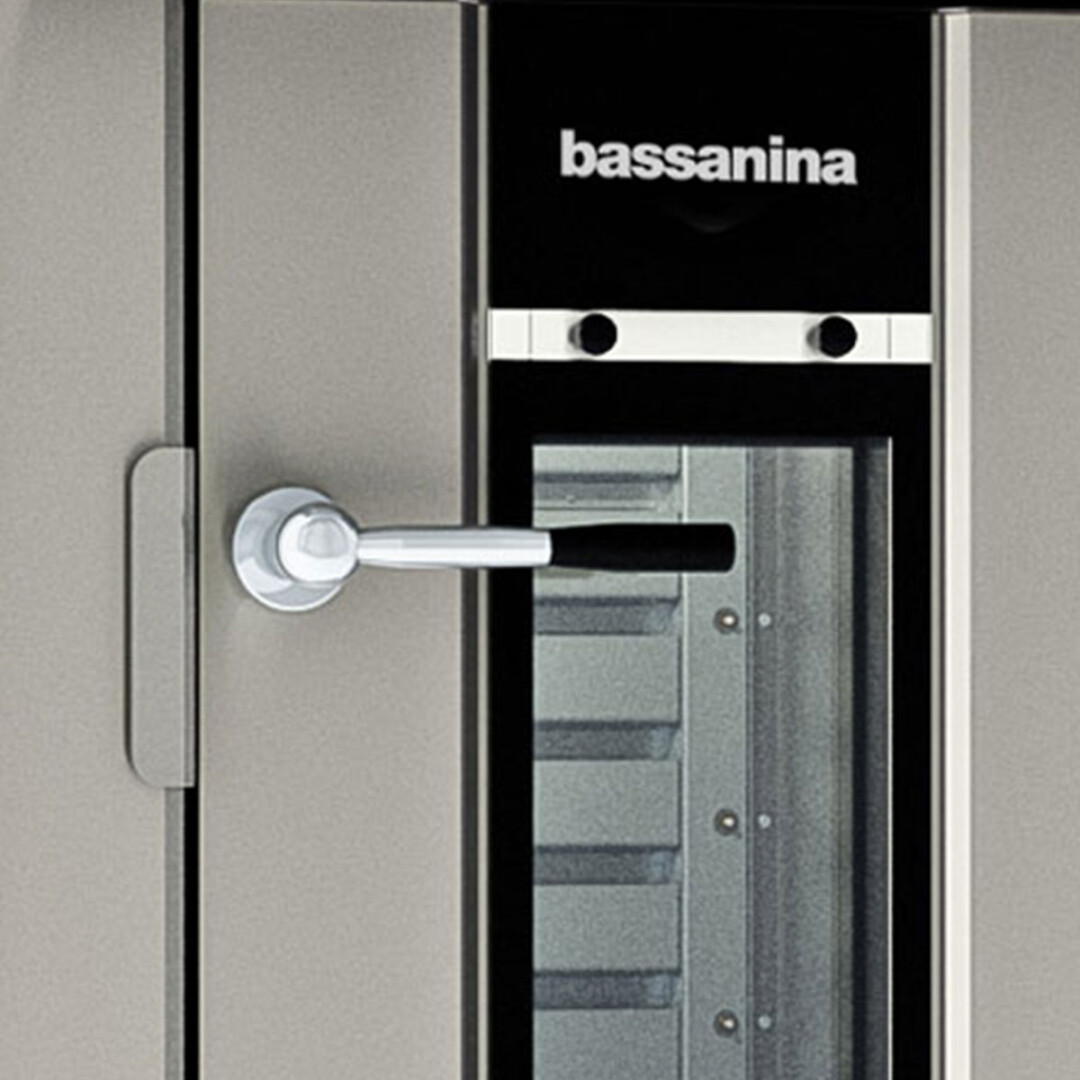

- Double-glass door for optimal thermal insulation and clear visibility during baking.

Steam Generation System:
- Built-in removable steamer inside the baking chamber, activated by a programmable timer.
- Manual or automatic steam exhaust valve.
- Excellent heat and steam distribution, even during continuous production cycles.

Ideal for:
- Pastry shops
- Small bakeries
- places with low ceilings
- Café kitchens
- Bakery schools

"The FR BABY delivers full-size results in half the space - we bake 120 big croissants per batch with perfect consistency."
- Sofia R., Patisserie Owner

ico_prodotto_01
Features

• Even heat distribution throughout the baking chamber ensures uniform results.
• Electric voltage: 400/50-60/3 -220/50-60/3 -220/1 (GAS).
• Electric voltage: 208/60/3 -110/1 (GAS).
• Multiple versions: mechanical or LCD programmable panel.

ico_prodotto_01
Specifications

• Door passage assembled
   FR BABY 46:
mm.  985x1593.
   FR BABY 57:
mm.1121x1593, inch 44.15x62.75.
   FR BABY 68: mm.1265x1715.
• Maximum rotation diagonal:
   FR BABY 46: mm.  740.
   FR BABY 57:
mm.  885, inch 34.85.
   FR BABY 68: mm.1010.
• Water connection: inlet 1/2’’, outlet 1’’.
• Steam exhaust outlet: 120 mm, in 5".
• Smoke exhaust outlet: 120 mm, 5".
• 2-years guaranteed

MODEL TRAY DISTANCE BAKING DIMENSIONS POWER WEIGHT
46 CM NR MM MQ MM - W x L x H + H1 KW KW KCAL KG
FR BABY E46 40 x 60 12 80 2.8 980 x 1500 x 1475 + 120 1 17   450
FR BABY 46 40 x 60 12 80 2.8 980 x 1500 x 1475 + 120 1   20.000 500



MODEL TRAY DISTANCE BAKING DIMENSIONS POWER WEIGHT
57 INCH NR INCH FT2 INCH - W x L x H + H1 KW KW KCAL LBs
FR BABY E SINGLE RACK 18 x 26 12 3.15 45 44 x 65 x 58 + 5.0 1 17   1100
FR BABY SINGLE RACK 18 x 26 12 3.15 45 44 x 65 x 58 + 5.0 1   23.000 1100



MODEL TRAY DISTANCE BAKING DIMENSIONS POWER WEIGHT
57 CM NR MM MQ MM - W x L x H + H1 KW KW KCAL KG
FR BABY E57 50 x 70 12 80 4.2 1120 x 1640 x 1475 + 120 1 17   500
FR BABY 57 50 x 70 12 80 4.2 1120 x 1640 x 1475 + 120 1   23.000 500



MODEL TRAY DISTANCE BAKING DIMENSIONS POWER WEIGHT
68 CM NR MM MQ MM - W x L x H + H1 KW KW KCAL KG
FR BABY E68 60 x 80 12 80 5.8 1260 x 1870 x 1595 + 120 1 23.5   700
FR BABY 68 60 x 80 12 80 5.8 1260 x 1870 x 1595 + 120 1   35.000 700
