• Made of 1.0 lo 4.0 mm gauge stainless steel.
• Heat exchanger is made of 2 mm gauge AISI 310 temperature resistance steel.
• Armored tubular finned heating elements is made of AISI 321 stainless steel.
• Multi chambers steam generator system. The single chamber are removable and easy cleaning.
• Structure system: joint with nuts and bolts.
• Perfect controlled air flow.
• Automatic steam dumper standard
• Double external flashing light with baking in progress and end indication.

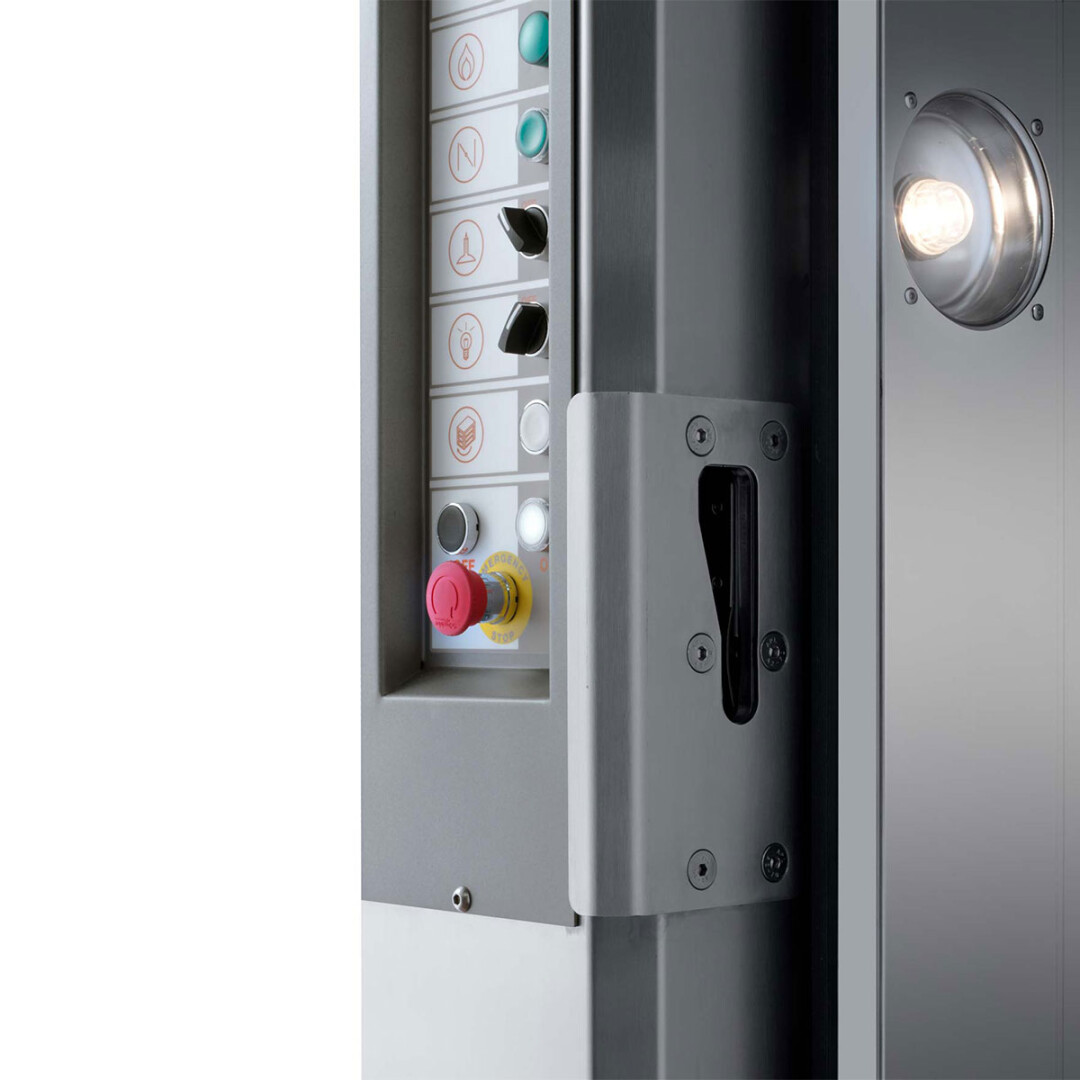

• Multiple versions: mechanical, LCD or Touch Screen programmable panel.
• Available in liquid fuel, gas, electricity or pellet.
Products
Cyclope Roller
Baking without compromises

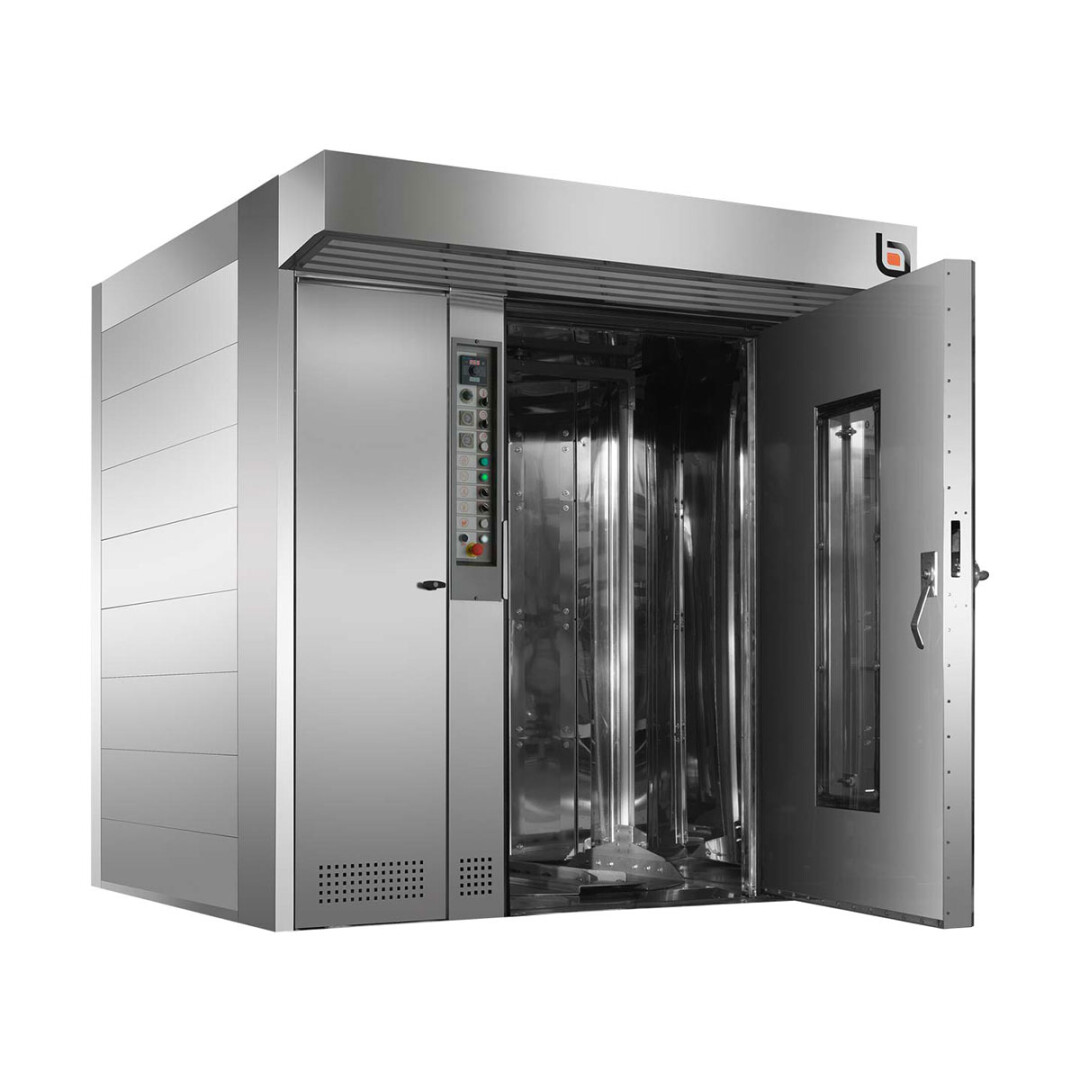

DOUBLE RACK OVEN
ROLLER is a high-performance convection oven featuring forced air circulation and a rotating rack system, designed for versatile baking of both small and large bread and pastry products.
It is provided with front burner and heat exchanger, in order to allow the alignment of various working units, by supporting common baking needs.
Key Features:
Front Burner & Heat Exchanger, saves back space and units alignment.
High Steam Output, ensures even baking, uniform crust, and perfect texture.
Bolted Construction, all parts are joined with nuts and bolts for superior thermal expansion resistance, enhancing durability and longevity.
Optimized Airflow, the rotating rack and forced convection system guarantee consistent heat distribution for uniform results.
Why Choose ROLLER?
Effective design, front services and streamlined solutions simplify maintenance.
Enhanced baking performance, steam-assisted, even heat.
Industrial-grade durability, bolted assembly withstands thermal stress.
Versatile applications, ideal for artisan bread, pastries, and large-format baking.
ROLLER is the answer to the big market users in terms of strength, longevity and simplicity.
Baking without compromise.
"Game-Changer for Artisan Production"
"Our ROTOR double-rack handles 500 sourdough loaves daily with perfect consistency. The steam control gives us that blistered crust customers love, while the rotating system ensures even coloring we could never achieve with static decks." - Giovanni R., Head Baker
Features
Safety systems
• Micro switch door opening control.
• Security thermostat.
• Safety handle.
• Clutch rack rotation.
• Overpressure breather.
• Loading/unloading suction hood.
• ETL. BISSC. CE.
Performance
• Maximum working temperature: 570°F.
• Continuous operation: 24/7 without interruptions.
• Uninterrupted baking cycles that maintain bread quality and consistent temperature rise.
• Highly responsive to baking adjustments for precise control.
• Temperature drop when opening the door: Approximately 68°F.
• Average temperature rise gradient: 47°F – 50°F.
• Supporting a total rack load of up to 660 lb.
Specifications
ROLLER 89- DOUBLE RACK
• Door passage: 37.56x73.70''.
• Maximum trolley (rack) height 71" (1800 mm)
• Maximum rotation diagonal: 48.4" (+0.8"/+0.8").
• Electric voltage: 208v/60hz/3ph+N+G - 220v/50-60hz/3ph+N+G - 400v/50-60hz/3ph+N+G
• Water connection: inlet 1/2", double outlet 3/4".
• Steam exhaust outlet: 7".
• Smoke exhaust outlet: 8".
• Modular cast-iron ball steamer, dual water inlet and downwardflow.
• Rack suspension hook system or turntable system.
• Optional: inverter speed control for circulation fan and steam extractor
• 2-years guaranteed.
ROLLER 89.3+ DOUBLE RACK
• Door passage: 37.56x78.43''.
• Maximum trolley (rack) height 75.6" (1920 mm).
• Maximum rotation diagonal: 48.4" (+0.8"/+0.8").
• Electric voltage: 208v/60hz/3ph+N+G - 220v/50-60hz/3ph+N+G - 400v/50-60hz/3ph+N+G
• Water connection: inlet 1/2", double outlet 3/4".
• Steam exhaust outlet: 7".
• Smoke exhaust outlet: 8".
• Modular cast-iron ball steamer, dual water inlet and downwardflow.
• Rack suspension hook system or turntable system.
• Optional: inverter speed control for circulation fan and steam extractor
• 2-years guaranteed.
Baking quality
• Stable, uniform and even baked.
• Volume and softness to all types of bread.
• Perfectly colored products with an appealing finish.
• Excellent and shiny crust. Homogenous thickness.
• Excellent texture for well developed bread.
| MODEL | TRAY DIMENSIONS | POWER | BAKING SURFACE | DIMENSIONS | WEIGHT | |||
|---|---|---|---|---|---|---|---|---|
| CYCLOPE | INCH | NR | KW | KCAL | ELETRIC KW | FT2 | INCH - W x L x H + H1 | LBs |
| ROLLER 89 (Double rack) | 2x (18x26 / 20x28) | 2x18 | 3.0 | 70.000 | 18x3400 W 61.2 | 58.50 / 70 | 83x69x87+16 | 4.235 |
| ROLLER 89.3+ (Double Rack) | 2x (18x26 / 20x28) | 2x18 | 3.0 | 70.000 | 18x3400 W 61.2 | 58.50 / 70 | 83x69x92+16 | 4.450 |
