FM MODULAR 3T - 6T
THE MODULAR ELECTRIC SERIES
Modular electric deck oven, with overlying and independent chambers.
Designed to meet the diverse needs of bakeries and pastry shops, this modular electric deck oven features independent, stackable chambers—each with a usable height of 180, 230, or 280 mm—allowing for simultaneous baking of various products such as bread, pastries, and pizzas.
Due to its structure, the oven can be easily re-positioned and the baking capacity increases.
Its features include constant temperature level, ready response in baking regulation, and uniform distribution of the heat.
Flexible Configuration
Available in configurations for 2, 4 or 3, 6 trays (tray sizes: 40×60 cm or 46×66 cm).
Stackable up to 5 independent decks, easily repositionable to adapt as baking demands grow.
Compatible with optional proofer (.PR) or stand (.ST) for enhanced versatility.
- Temperature Control. Separate regulation for each chamber ensures accurate baking conditions, with balanced power control between the top and bottom.
- Efficiency: The electronic economizer is a standout feature, capable of reducing used power by about 50%, optimizing energy use.
- Robust Build: Refractory baking floors suited for food use, alongside stainless steel and tempered crystal components, indicate durability and quality.

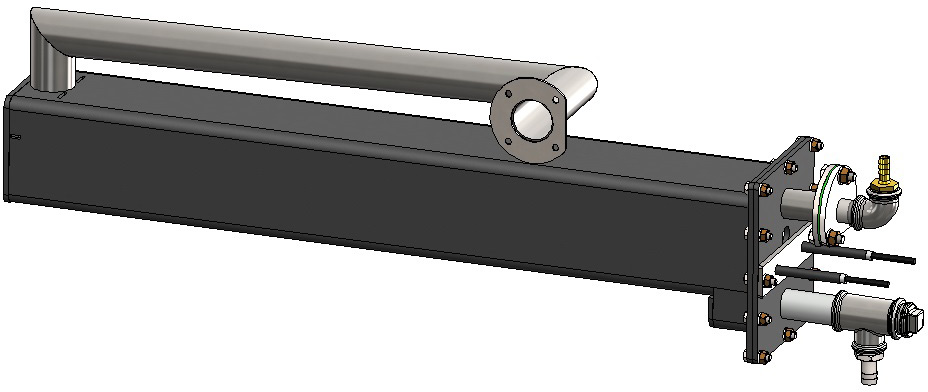

- Steam Generators: Independent, powerful generators for consistent steaming functionality.
- Customizable Power: Three-phase power options at various voltages and frequencies, plus special voltage customization, make it adaptable for different settings.
Features
• Heat by conduction: armored heating elements with side access.
• Independent temperature control for each chamber
• Independent steam generators for any deck.
• Adjustable power ratio between top and bottom heating zones.
• Made of stainless steel.
• Baking floors made of 20 mm fireproof concrete plates, suitable for food use.
• Loading doors of thick temperate glass; removable for easy cleaning
Specifications
Control instrument
Digital control panel equipped with: economizer of 50%, storable baking
programs, independent control for steam heating element, deferred daily
start timer, alarm baking time ending, indipendent temperature control for
ceiling and floor with double thermostat and double probe.
MODEL |
TRAYS |
POWER |
BAKING |
DIMENSIONS |
WEIGHT |
|
CM |
NR |
KW |
MQ |
MM |
MM - W x L x H + H1 |
KG |
FM 3T |
40 x 60 |
3 |
6.2 |
0.8 |
1220 x 620 |
1600 x 1070 x 320 l370 l420 |
115 |
PROOFER |
40 x 60 |
24 |
0.5 |
|
|
1600 x 1070 x 750 + 10 |
120 |
HOOD |
|
|
0.1 |
|
|
1600 x 1220 x 170 + 90 |
30 |
STEAM GENERATOR |
|
|
1 |
|
2/3/4 |
|
35 |
FM 6T |
40 x 60 |
6 |
11.8 |
1.5 |
1220 x 1220 |
1600 x 1670 x 320 l370 l420 |
230 |
PROOFER |
40 x 60 |
36 |
1.0 |
|
|
1600 x 1670 x 750 + 10 |
180 |
HOOD |
|
|
0.1 |
|
|
1600 x 1820 x 170 + 90 |
35 |
STEAM GENERATOR |
|
|
1.4 |
|
2/3/4 |
|
45 |
