• Even heat distribution throughout the baking chamber ensures uniform results.
• Built-in proofer with 10 tray capacity
• Multiple versions: mechanical or LCD programmable panel.
Products
FR Mini 57 Combi
Loading the quality
SINGLE RACK OVEN
FR Mini is a high-efficiency rotary convection oven designed for reduced loads, making it an ideal solution for artisan bakeries, confectionery labs, and professional kitchens.
Despite its compact size, it delivers powerful performance and exceptional baking results.

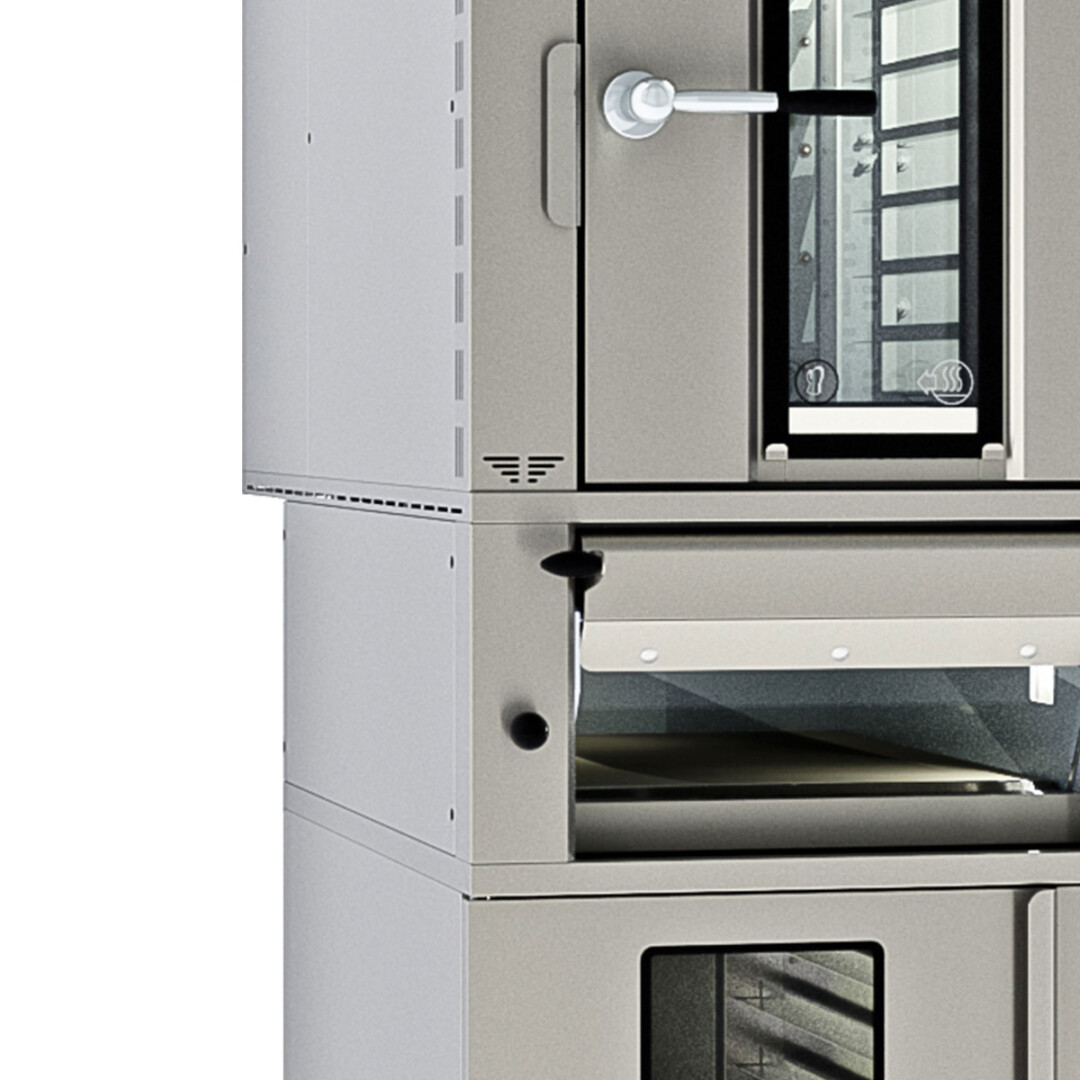

FR Mini Combi is configured with an electric static deck of 2 trays 18x26" (cm. 50x70), completed of steam devices and 12 trays stainless steel proofer
Key Features
Capacity Options, 8 or 10 baking trays of 18x26"or 50x70 cm.
Deck, 7" or 9" hight
Heating Configurations.
- Electric version with armored heating elements (top-mounted).
Construction:
Full stainless steel structure for durability and hygiene.
Double-glass door for thermal efficiency and visibility.
Crossed rockwool panel insulation ensures minimal heat loss.
Steam System:
Delivers a consistent and high-quality steam output for optimal crust formation and baking of even high-hydration doughs.
Powerful, easy-to-clean steamer.
Manual or automatic steam exhaust valve.
Applications:
The FR Mini's compact design and flexible configuration make it perfect for use in:
Family bakeries and retail baking points
Shopping centers
Hotels & Restaurants
Test kitchens and product development labs
Features
Specifications
• Door passage assembled
8 trays+9"deck: mm.1070x2445, inch 43x97.
10 trays+9"deck: mm.1070x2615, inch 43x103.
• Maximum rotation diagonal mm.900, inch 35.43.
• Electric voltage: 400/50-60/3 -220/50-60/3 -220/1.
• Electric voltage: 208/60/3.
• Water connection: inlet 1/2’’, outlet 1’’.
• Steam exhaust outlet: 120 mm, 5".
• Multiple versions: mechanical, LCD or touch screen programmable panel.
• 2-years guaranteed.
| MODEL | TRAY | DISTANCE | BAKING | DIMENSIONS | POWER | WEIGHT | ||
|---|---|---|---|---|---|---|---|---|
| ELECTRIC | INCH | NR | INCH | FT2 | INCH - W x L x H + H1 | KW | KW | LBs |
| FR MINI E57.8 | 18 x 26 | 8 | 3.27 | 26.0 | 42.13 x 47.25 x 43.70 + 200 | 1.5 | 12.0 | 740 |
| FR MINI E57.10 | 18 x 26 | 10 | 3.27 | 32.5 | 42.13 x 47.25 x 50.40 + 200 | 1.5 | 12.0 | 775 |
| DECK 7" | 18 x 26 | 2 | 7 | 7.53 | 39 x 45.85 x 14.55 | 3.6 | 265 | |
| DECK 9" | 18 x 26 | 2 | 9 | 7.53 | 39 x 45.85 x 16.54 | 3.6 | 287 | |
| FR MINI E57.PR | 18 x 26 | 10 | 2.44 | 42.13 x 47.25 x 36.22 | 0.5 | 177 | ||
