• Even heat distribution throughout the baking chamber ensures uniform results.
• Electric voltage: 400/50-60/3 -220/50-60/3 -220/1 (GAS).
• Electric voltage: 208/60/3 -110/1 (GAS).
• Multiple versions: mechanical or LCD programmable panel
SINGLE RACK OVEN

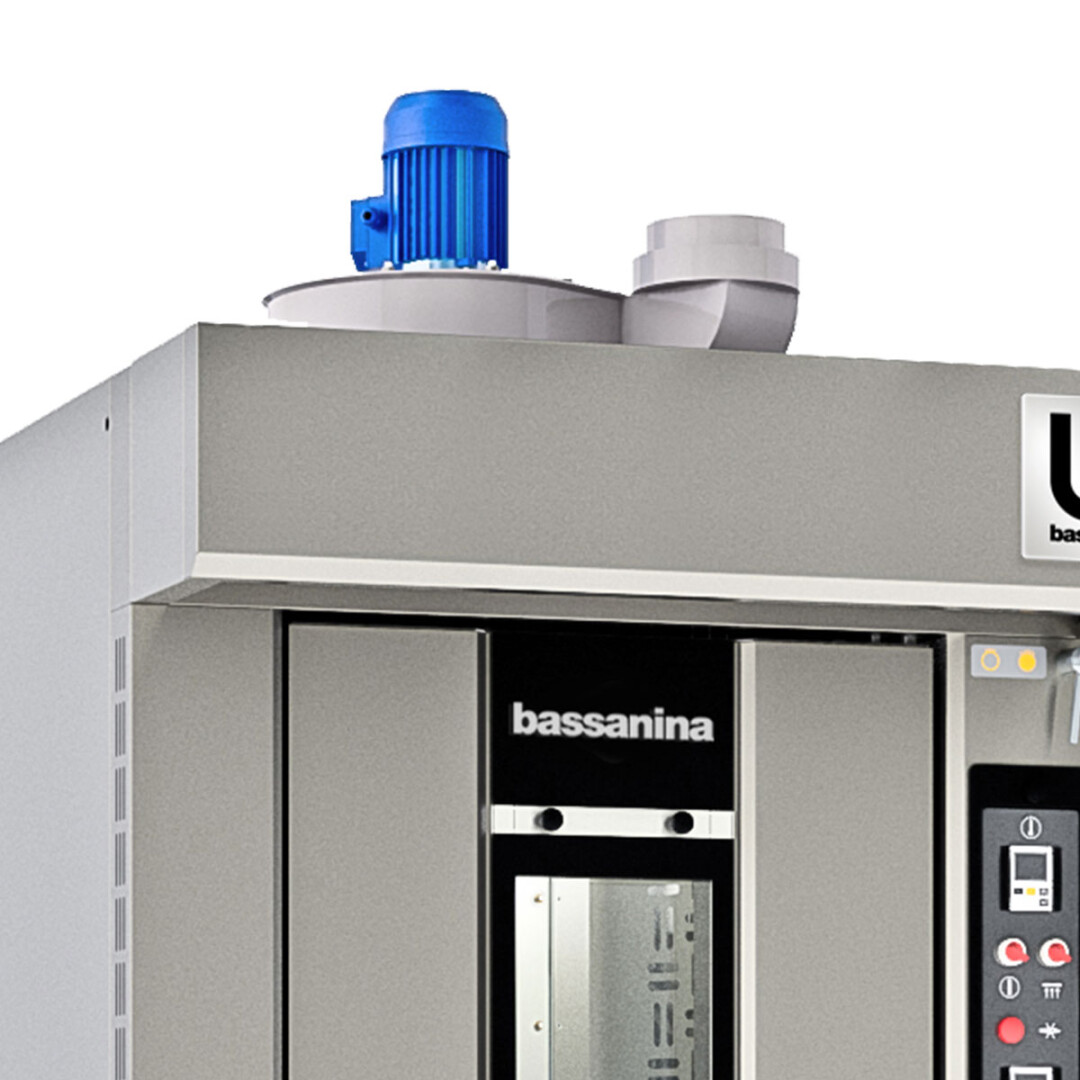

COMPACT is a convection oven equipped with forced air circulation and a rotating rack.
Offering excellent baking performance in minimal space.
Its versatility makes it ideal for a wide variety of bread and pastry products, both in small and medium-scale production.
Thanks to the balanced airflow and rotating rack, COMPACT ensures even and consistent baking, delivering outstanding volume, softness, and overall product quality.
Key Forniture:
- Forced air convection system with balanced airflow for uniform heat distribution.
- Removable rotating rack with a capacity of 15 trays (18x26 inches).
- Available in electric version with high-performance armored heating elements, or with a gas/diesel burner.
- Full stainless steel construction for maximum durability and hygiene.

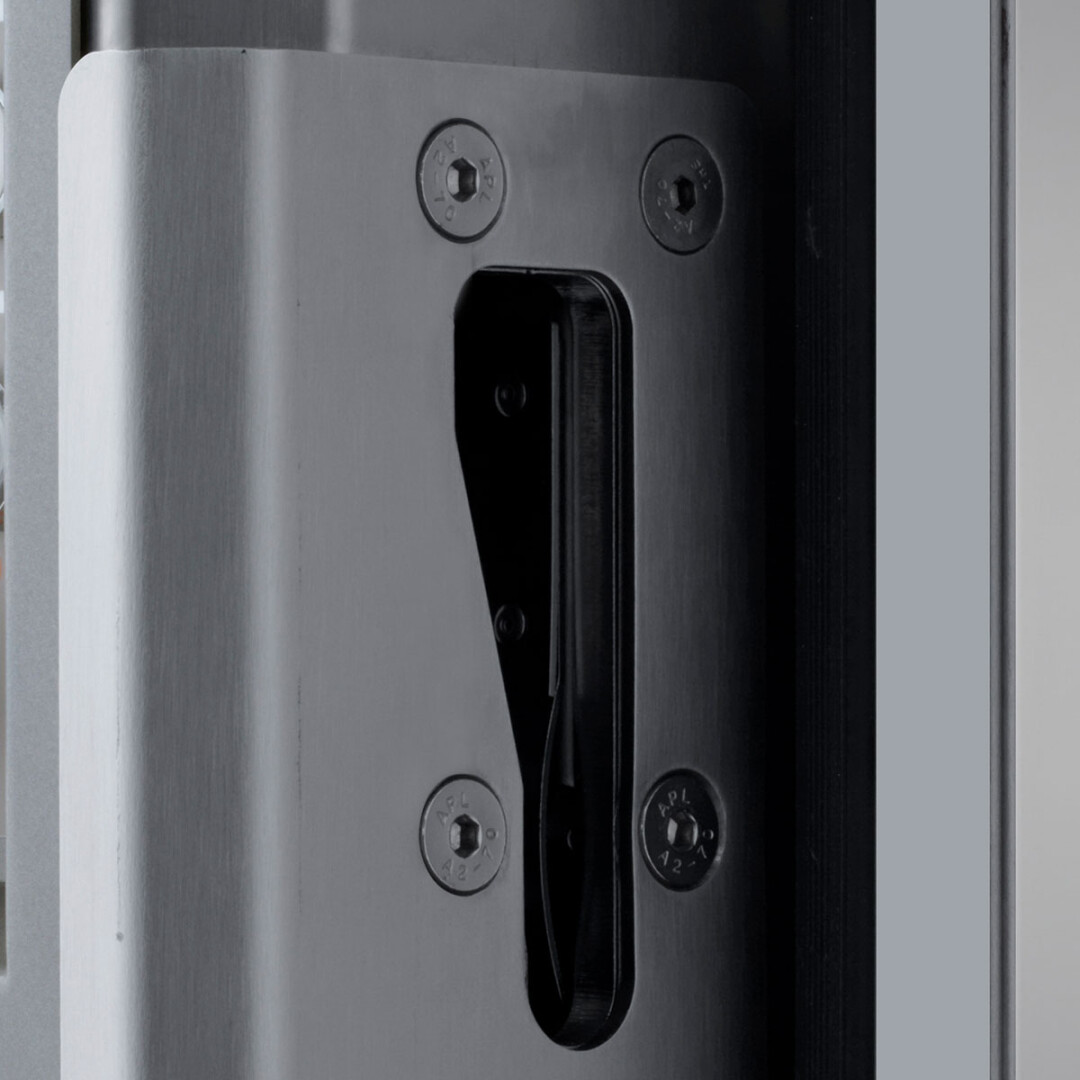

- Double-glass door for optimal thermal insulation and clear visibility during baking.
Steam Generation System:
- Built-in removable steamer inside the baking chamber, activated by a programmable timer.
- Manual steam exhaust valve.
- Excellent heat and steam distribution, even during continuous production cycles.
Ideal For:
- Pastry shops.
- Pastry shops that also produce bread.
- Shops where the space is particularly limited.
- Small pastry and bakery shops that don’t want to give up the convenience of working with pull-out trolleys.
COMPACT is the synthesis of compact design and outstanding results.
A baking experience that satisfies.
• Even heat distribution throughout the baking chamber ensures uniform results.
• Electric voltage: 400/50-60/3 -220/50-60/3 -220/1 (GAS).
• Electric voltage: 208/60/3 -110/1 (GAS).
• Multiple versions: mechanical or LCD programmable panel
• Door passage assembled
FR COMPACT 57E: mm.1121x2255, inch 44.15x88.80.
FR COMPACT 57Gas: mm.1121x2145, inch 44.15x84.45.
• Maximum rotation diagonal: mm.885, inch 34.85.
• Water connection: inlet 1/2’’, outlet 1’’.
• Steam exhaust outlet: 150 mm, in 6".
• Smoke exhaust outlet: 120 mm, 5".
• 2-years guaranteed
MODEL | TRAY | DISTANCE | BAKING SURFCE | DIMENSIONS | POWER | WEIGHT | ||||
---|---|---|---|---|---|---|---|---|---|---|
INCH | NR | INCH | FT2 | INCH - W x L x H + H1 | KW | KW | KCAL | LBs | ||
FR COMPACT E57 | ELECTRIC | 18x26 / 20x28 | 15 | 3.8 | 48.75 | 44 x 57 x 80 + 13 | 1 | 28.0 | 1325 | |
FR COMPACT G57 | BURNER | 18x26 / 20x28 | 15 | 3.8 | 48.75 | 44 x 57 x 80 + 13 | 1 | 35.000 | 1770 |
