• Heat by conduction: armored heating elements with side access.
• Independent temperature control for each chamber
• Independent steam generators for any deck.
• Adjustable power ratio between top and bottom heating zones.
• Made of stainless steel.
• Baking floors made of 20 mm fireproof concrete plates, suitable for food use.
• Loading doors of thick temperate glass; removable for easy cleaning.
Products
FEP 3-4 DECKS / 1-2 DOORS
THE ELECTRIC SERIES
Electric deck oven is designed to meet with precision diverse baking needs while maintaining efficiency.
ts modular design, with options for different door widths, deck heights and numbers of decks, offers flexibility based on production requirements.
Its features include constant temperature level, ready response in baking regulation, and uniform distribution of the heat
- Temperature Control. Separate regulation for each chamber ensures accurate baking conditions, with balanced power control between the top and bottom.
- Efficiency: The electronic economizer is a standout feature, capable of reducing used power by about 50%, optimizing energy use.
- Robust Build: Refractory baking floors suited for food use, alongside stainless steel and tempered crystal components, indicate durability and quality.
- Steam Generators: Independent, powerful generators for consistent steaming functionality.
- Customizable Power: Three-phase power options at various voltages and frequencies, plus special voltage customization, make it adaptable for different settings.
Features
Specifications
Door Options:
• Single door: 1 x 31.5”; 1 x 800 mm.
• Double doors: 2 x 23.5”; 2 x 600 mm.
Deck Options:
• 3 or 4 independent baking chambers.
• Depth: 47.2”, 63.0”, 78.7”, 94.5”;
• Depth: mm.1200,1600,2000,2400.
Chamber Heights:
• Top deck: 9”; 230 mm.
• Other decks: 7”; 180 mm.

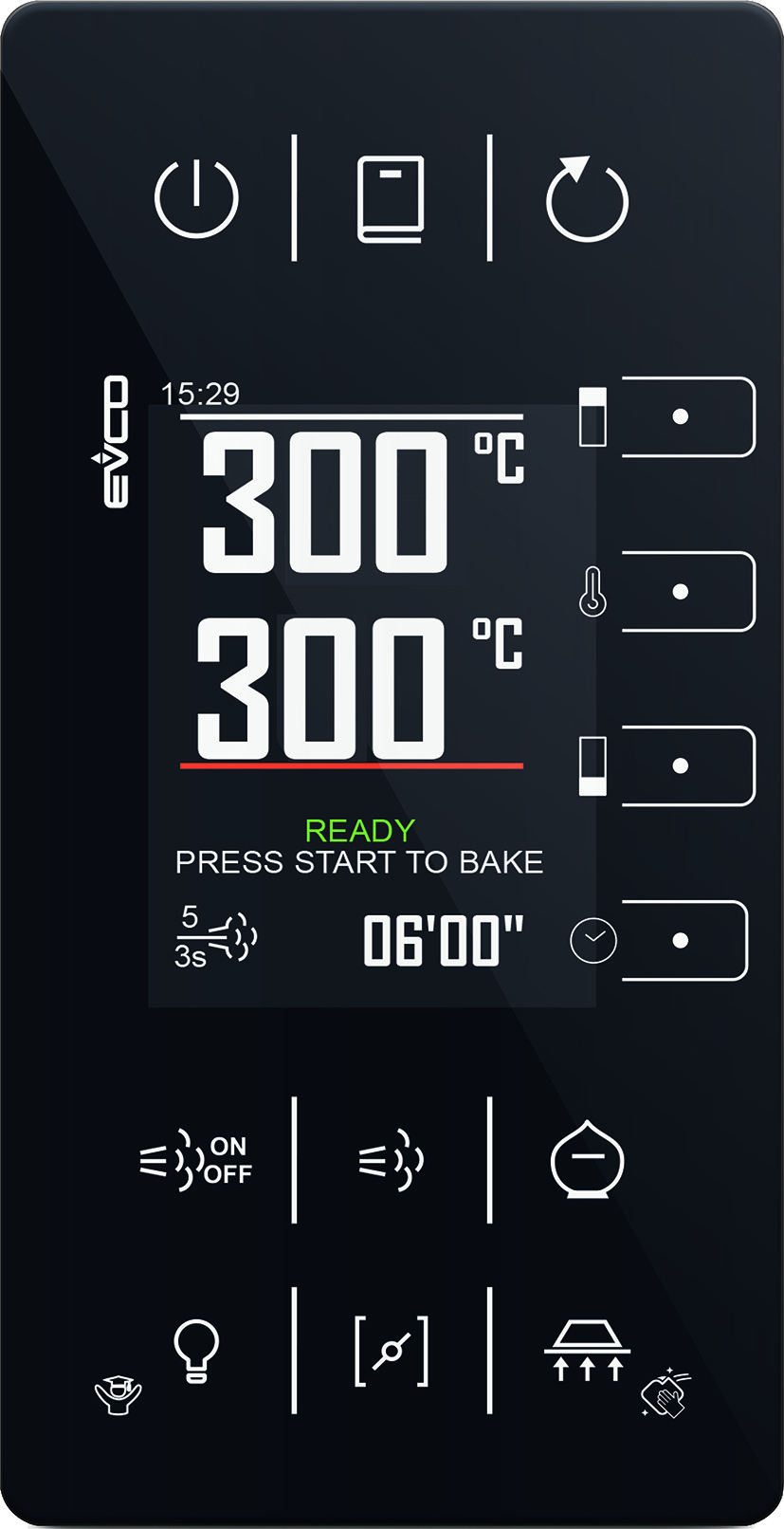

Control instrument
Digital control panel equipped with: economizer of 50%, storable baking
programs, independent control for steam heating element, deferred daily
start timer, alarm baking time ending, indipendent temperature control for
ceiling and floor with double thermostat and double probe.
| MODEL | DECKS | DOORS | BAKING | DIMENSIONS | POWER | WEIGHT | |
|---|---|---|---|---|---|---|---|
| FEP | NR | NR | FT2 | INCH | INCH - W x L x H + H1 | KW | LBs |
| 31.8.12 | 3 | 1 | 31.2 | 32.3x47.2 | 57.9 x 87.0 x 84.6 + 13.0 | 26 | 2825 |
| 31.8.16 | 3 | 1 | 40.9 | 32.3x63.0 | 57.9 x 101.6 x 84.6 + 13.0 | 35 | 3310 |
| 31.8.20 | 3 | 1 | 51.7 | 32.3x78.7 | 57.9 x 117.3 x 84.6 + 13.0 | 41 | 3550 |
| 32.12 | 3 | 2 | 47.4 | 47.2x47.2 | 72.8 x 87.0 x 84.6 + 13.0 | 35 | 3815 |
| 32.16 | 3 | 2 | 62.4 | 47.2x63.0 | 72.8 x 101.6 x 84.6 + 13.0 | 45 | 4080 |
| 32.20 | 3 | 2 | 77.5 | 47.2x78.7 | 72.8 x 117.3 x 84.6 + 13.0 | 54 | 4350 |
| 32.25 | 3 | 2 | 96.9 | 47.2x98.4 | 72.8 x 137.0 x 84.6 + 13.0 | 63 | 4740 |
| 41.8.12 | 4 | 1 | 40.9 | 32.3x47.2 | 57.9 x 87.0 x 84.6 + 13.0 | 34 | 2980 |
| 41.8.16 | 4 | 1 | 55.9 | 32.3x63.0 | 57.9 x 101.6 x 84.6 + 13.0 | 46 | 3460 |
| 41.8.20 | 4 | 1 | 68.9 | 32.3x78.7 | 57.9 x 117.3 x 84.6 + 13.0 | 54 | 4035 |
| 42.12 | 4 | 2 | 62.4 | 47.2x47.2 | 72.8 x 87.0 x 84.6 + 13.0 | 46 | 4300 |
| 42.16 | 4 | 2 | 82.9 | 47.2x63.0 | 72.8 x 101.6 x 84.6 + 13.0 | 60 | 4630 |
| 42.20 | 4 | 2 | 107.6 | 47.2x78.7 | 72.8 x 117.3 x 84.6 + 13.0 | 72 | 4960 |
| 42.25 | 4 | 2 | 129.2 | 47.2x98.4 | 72.8 x 137.0 x 84.6 + 13.0 | 84 | 5225 |
| MODEL | DECKS | DOORS | BAKING | DIMENSIONS | POWER | WEIGHT | |
|---|---|---|---|---|---|---|---|
| FEP | NR | NR | MQ | MM | MM - W x L x H + H1 | KW | KG |
| 31.8.12 | 3 | 1 | 2.90 | 820 x 1200 | 147 x 221 x 215 + 33 | 26 | 1280 |
| 31.8.16 | 3 | 1 | 3.80 | 820 x 1600 | 147 x 258 x 215 + 33 | 35 | 1500 |
| 31.8.20 | 3 | 1 | 4.80 | 820 x 2000 | 147 x 298 x 215 + 33 | 41 | 1610 |
| 32.12 | 3 | 2 | 4.40 | 1200 x 1200 | 185 x 221 x 215 + 33 | 35 | 1730 |
| 32.16 | 3 | 2 | 5.80 | 1200 x 1600 | 185 x 258 x 215 + 33 | 45 | 1850 |
| 32.20 | 3 | 2 | 7.20 | 1200 x 2000 | 185 x 298 x 215 + 33 | 54 | 1970 |
| 32.25 | 3 | 2 | 9.00 | 1200 x 2500 | 185 x 348 x 215 + 33 | 63 | 2150 |
| 41.8.12 | 4 | 1 | 3.80 | 820 x 1200 | 147 x 221 x 215 + 33 | 34 | 1350 |
| 41.8.16 | 4 | 1 | 5.20 | 820 x 1600 | 147 x 258 x 215 + 33 | 46 | 1570 |
| 41.8.20 | 4 | 1 | 6.40 | 820 x 2000 | 147 x 298 x 215 + 33 | 54 | 1830 |
| 42.12 | 4 | 2 | 5.80 | 1200 x 1200 | 185 x 221 x 215 + 33 | 46 | 1950 |
| 42.16 | 4 | 2 | 7.70 | 1200 x 1600 | 185 x 258 x 215 + 33 | 60 | 2100 |
| 42.20 | 4 | 2 | 10.00 | 1200 x 2000 | 185 x 298 x 215 + 33 | 72 | 2250 |
| 42.25 | 4 | 2 | 12.00 | 1200 x 2500 | 185 x 348 x 215 + 33 | 84 | 2370 |
